LED Flood Light Module Fin Cooling Sink

Use prefect anodizing aluminum alloy heatsink,improve the service life of radiator.
Excellent operating temperature -40°C ~ 50°C.

High performance design with multi-chips package 5050 LED source.Stable performance,low light failure and NO dead lights.

Exclusive Lens.The light transmittance up to 98%.Luminous efficacy up to 190lm/w.
25°,40°,60°,90°,150° lens optional. Uniform light distribution apply to different streetlight project.
Replaceable and upgradable modular design easy assembly,easy installation,easy maintenance.
Green product,no UV,IR radiation or mercury pollution.Passed IEC62471...
With excellent housing design reach IP67 rating.
Double Clip on closure,"Plug and Play" system suitable for SKD.
CE,Rohs,UL,LM-79,LM-80 approved.
Life-span over 50,000 hours,5 years warranty.

LED Flood Light Module Spec.:

Model

CS-MSL3060-70

Power

30W

40W

50W

60W

Input Voltage

DC36V

LEDs

3030 LED

CRI

70(>80,>90 optional)

CCT

3000K/4000/5000K/6000K

Beam Angle

24°/36°/60°/90°,145*100°, 150*70°

Luminous Efficiency

145lm/w

135lm/w

135lm/w

120lm/w

Luminous Flux (±5%)

4350

5800

6750

7500

LEDs Qty.

60PCS

IP /IK Rate

IP66,IK10

Working Environment

-40~50,20%~90% H.R

Storage Temperature

-40~85,10%~90% H.R.

Body Material

Aluminum

Lens Material

PC

Connector Size

M15

N.W.

0.42KG/pcs

Module Size(mm)

300*70*47

Lifespan

>50,000 Hours (Ta=30@L70)

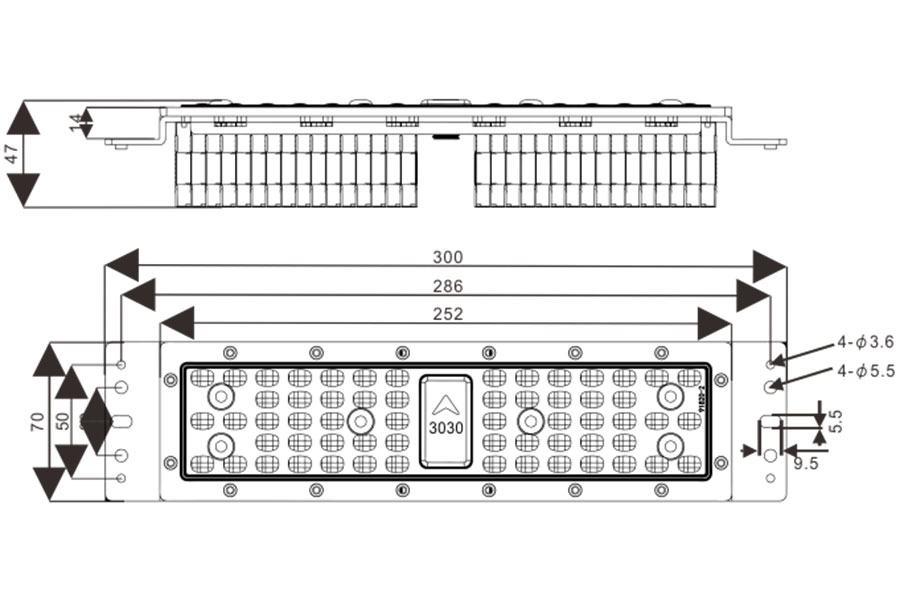

LED Flood Light Module Dimension:

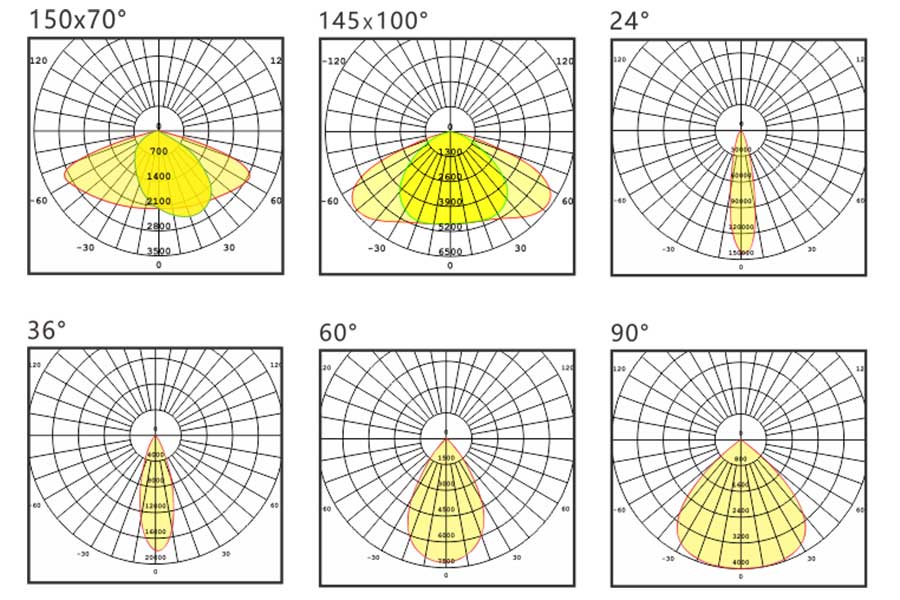

LED Flood Light Module distribution Curve:
